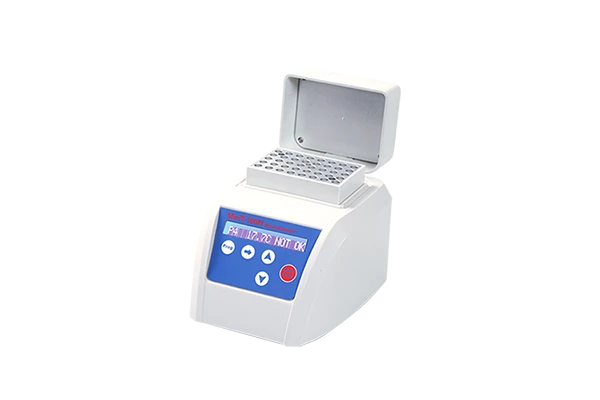

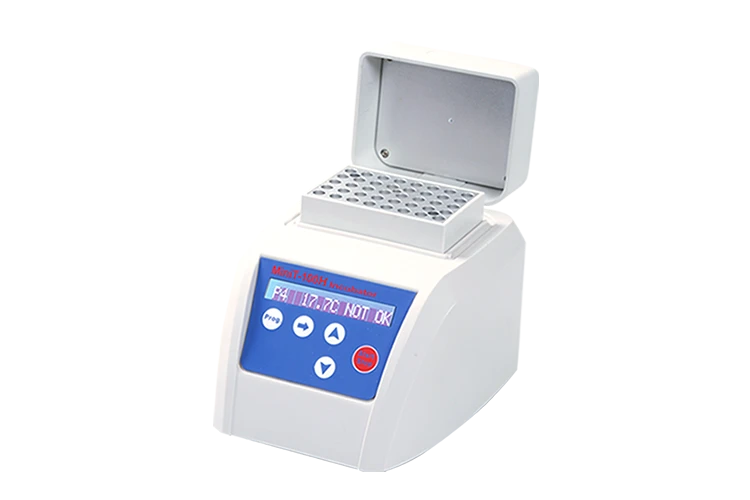

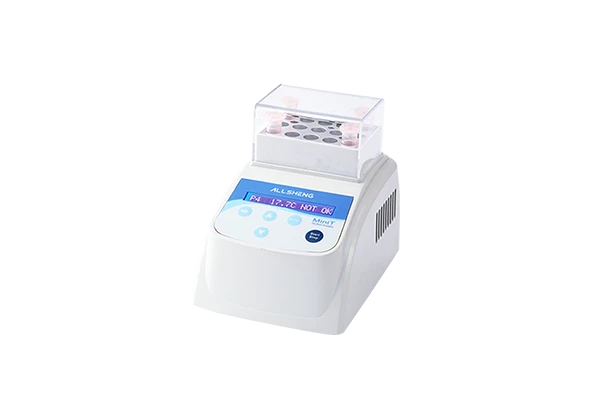

Mini-Dry Bath Incubator
MiniT-100H
MiniT-100H dry bath incubators combine a microprocessor-controlled. It can be applied to the palm type dry bath incubators of vehicle power supply. It has the advantages of small volume, light weight and convenient movement. It is suitable for field or crowded experimental environment. This model has PCR thermo lid technology, enhancing evaporation prevention.
-
Temperature control range: RT.+5 °C~100 °C -
PCR thermo lid technology, enhancing evaporation prevention
Features
-
Immediate temperature display, time decrement display.
Small footprint, only the size of the palm of an ordinary person, light in weight, less than 1 kg.
24V DC power input with built-in over-temperature protection, suitable for vehicle power sources.
Automatic fault detection and buzzer alarm function.
Temperature deviation calibration function.
Convenient block replacement for easy cleaning and disinfection.
With PCR thermo lid technology, adding anti-evaporation function.
| Model | MiniT-100H |
| Temperature control range | RT.+5 °C~100 °C |
| Timer range | 1～999 min or 1~999 sec |
| Temp. control accuracy | ±0.5 ℃ |
| Display accuracy | ±0.1 ℃ |
Heating time (25 °C to Max) | ≤15 min |
| Temperature stability | ±0.3 ℃ |
| Thermo lid temperature range | RT.+5 °C~100 °C |
| Dimension (W×D×H) mm | 152×120×112 mm |
| Weight | 0.9 kg |
| Power supply | DC 24 V |
| Code | Product description |
| AS-01160-00 | MiniT-100H mini dry bath DC24 V, 50 W |
| AS-01131-01 | 40×0.2 mL tube |

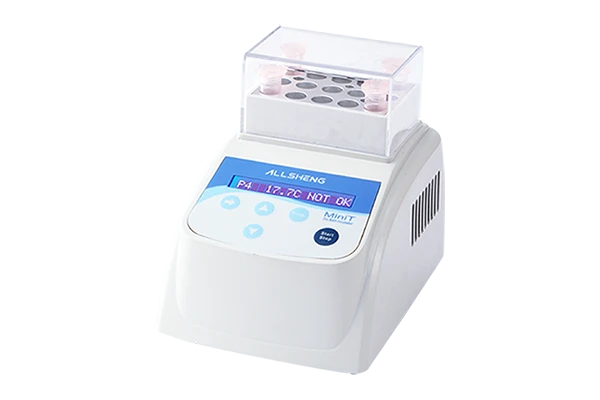

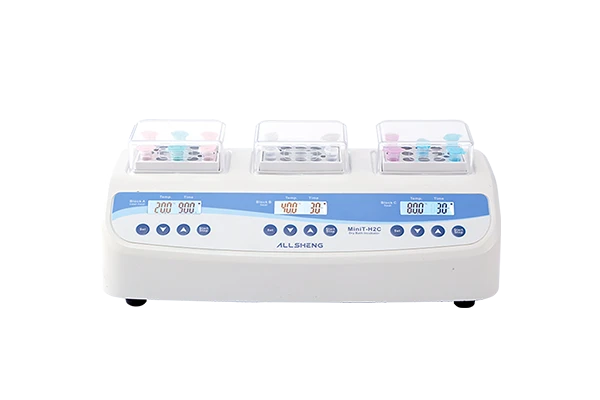

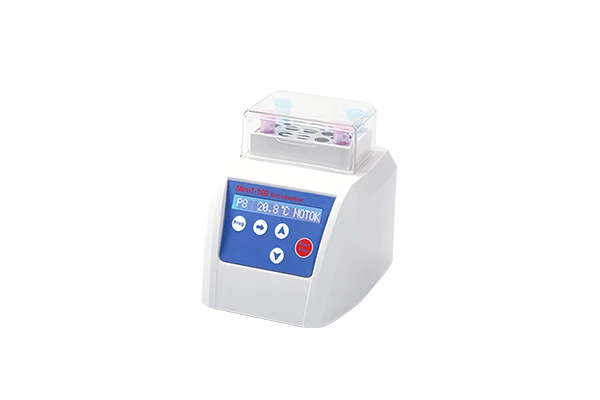

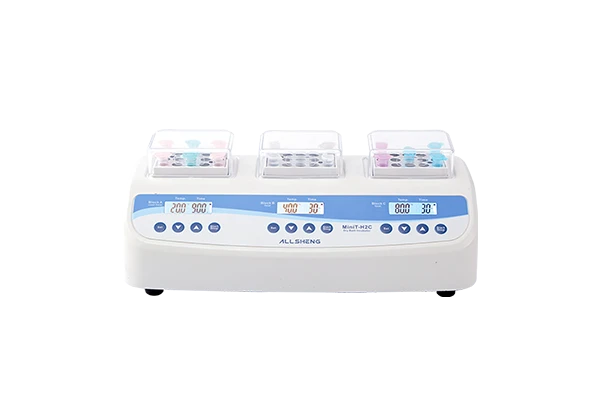

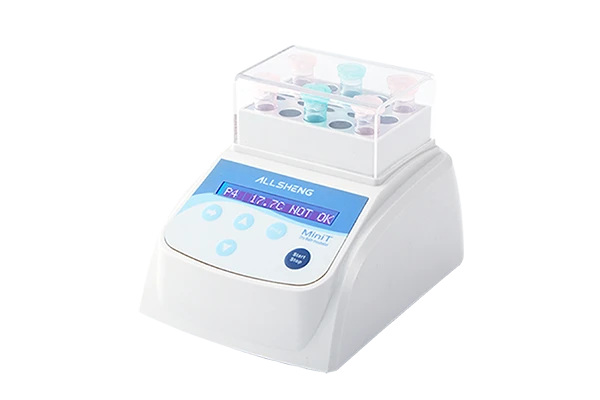

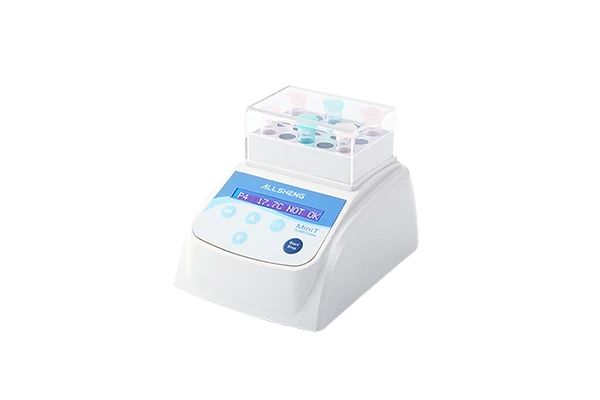

Selection Guide
Model | ||||||
Temperature control range | RT.+5 °C~80 °C | 0 °C~100 °C | RT.+5 °C~100 °C | RT.+5 °C~100 °C | Block-A: 0 °C~99.9 °C / Block-B: RT.+5 °C~99.9 °C / Block-C: RT.+5 °C~99.9 °C | RT.+5 °C~99.9 °C |
Heating time (25 °C to 80 °C) | ≤12 min | ≤20 min | ≤15 min | ≤15 min | ≤20 min | ≤20 min |
Others | / | Cooling time (25 °C to 0 °C) ≤25 min | / | Thermo lid temperature control range: RT.+5 °C~100 °C | 3 individual controllers | 3 individual controllers |
