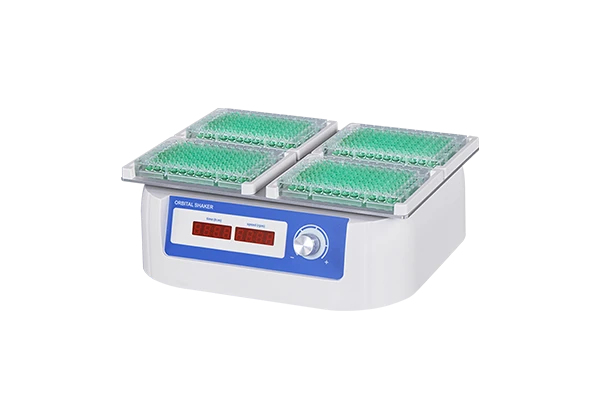

Microplate Shaker
MX100-4A
MX100-4A is driven by a brushless DC motor and is mainly used for ELISA plate (96-well / 384-well plate), TCPS (24-well plate, 48-well plate, 96-well plate, etc.) and 1.5 / 2.0 mL centrifuge tube and other solutions to mix and shake.
-
4 microplates per run
Features
-
LED displays time and speed, which is easy to accurate setup.
With power-off recovery function, when the power is cut off and the power is turned on again, the device can automatically resume operation according to the original set procedure.
Optional 20 / 1.5 mL tube holder, which can mix up to 80 centrifuge tubes at the same time.
Orbital of 3 mm for efficient mixing in small sample vessels.
Multiple safety protection functions, comply with CE safety standards, safe and reliable.
| Model | MX100-4A |
| Mixing orbit | 3 mm |
| Shaking speed setting accuracy | 10 rpm |
| Shaking speed | 200~1500 rpm standard microplate / 200~1000 rpm deepwell plate or tube holder |
| Timer range | 1 min~99 h59 min |
| Power supply | 24 VDC |
| Dimension | 290×270×120 mm |
| Weight | 6.5 kg |
| Code | Product description |
| AS-04040-00 | MX100-4A microplate shaker |
| AS-04041-01 | 20×1.5 mL tube holder (optional) |
| AS-04041-02 | 20×0.5 mL tube holder (optional) |
Related Products
Selection Guide
Model | |||||
Temperature control range | RT.+5 °C~70 °C | RT.+5 °C~70 °C | RT.+5 °C~70 °C | RT.+5 °C~70 °C | / |
Shaking speed | 100~1200 rpm | 100~1500 rpm | / | / | 200~1500 rpm standard microplate / 200~1000 rpm deepwell plate or tube holder |
Capacity | 2 microplates | 4 microplates / deepwell plates | 2 microplates | 4 microplates | 4 microplates |
