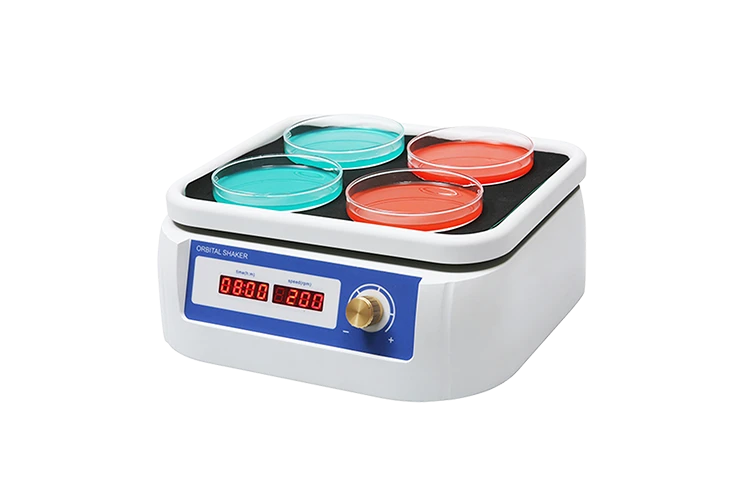

Orbital Shaker
OS-200
OS-200 orbital shaker has a compact and simple design, adopting brushless DC motor technology and microcomputer control technology, with various functions, suitable for fields such as biotechnology, microbiology, and medical analysis.
-
Shaking speed 50~250 rpm -
Orbit 20 mm
Features
-
Suitable for a variety of mixing work in different fields.
Speed range 50~250 rpm.
Microprocessor control.
With timer function, cultivation time can be set within 1 min~100h.
Exchangeable loading platform, maximum capacity: 2.5 kg.
Low-voltage power supply, can be used in a cold room.
DC brushless motor drive, long life, maintenance-free.
Operating ambient: temperature range 4 °C to 45 °C.
Universal platform, flat platform or platforms with clamps.
| Model | OS-200 |
| Shaking speed | 50~250 rpm |
| Orbit | 20 mm |
| Timer range | 1 min～99 h 59 min |
| Load capacity | Refer to accessories |
| Max. capacity | 2.5 kg |
| Motor | DC brushless |
| Dimension (L×W×H) mm | 280×270×110 mm |
| Operating ambient | 4～45 °C |
| Code | Product description |
| AS-04020-00 | OS-200, AC100~240 V, 50 / 60 Hz, 2 A |
| AS-04021-01 | PP-1, flat platform with non-slip rubber mat |
| AS-04021-02 | PP12-100, platform with clamps for flasks, 100-150 mL |
| AS-04021-03 | PP06-250, platform with clamps for flasks, 250-300 mL |
| AS-04021-04 | UP-1, universal platform with adjustable bars for different types of flasks, bottles |
| AS-04021-05 | MP-1, platform with springs |
