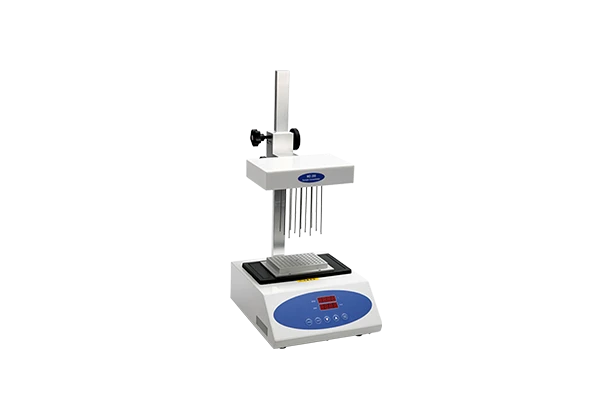

MD200-1A
-
Temperature control range: RT.+5 °C~150 °C -
Needle length 80 mm
Features
-
The heater enables the sample to be quickly and efficiently heated to the evaporation temperature, and at the same time, the gas is blown from the gas chamber to the surface of the solution through the gas needle, which promotes rapid evaporation of the solution and concentration of the sample.
The position of the gas needle in the gas chamber can be changed to make it suitable for different test tubes. The standard gas needle length is 80 mm.
The height of the air cavity can be adjusted, this product has a unique feature: the liquid level position of the concentrated sample can be observed at any time when the sample is concentrated.
When concentrating toxic solvents, the entire system can be placed in a fume hood.
Automatic fault detection and alarm function.
Standard with air chamber and special adjustable stand.
Built-in over temperature protection device.
Real time temperature display, time decrement display.
| Model | MD200-1A |
| Temperature control range | RT.+5 °C～150 °C |
| Temperature control accuracy @40~100 °C | ±0.5 °C |
| Temperature control accuracy @100~150 °C | ±1 °C |
| Temperature accuracy for blocks @40 °C | ±0.3 °C |
| Display accuracy | 0.1 °C |
| Heating time (40~150 °C) | ≤30 min |
| Standard blocks | 1 |
Needle length | 80 mm |
| Nitrogen consumption | 0～15 L/min |
| Dimension (mm) | 280×240×500 mm |
| Code | Product description |
| AS-06060-00 | MD200-1A, AC 220 V / AC 120 V, 50 / 60 Hz, 200 W |
| AS-06061-01 | 80 mm needles (just for MD200-1A) |
| AS-06051-02 | Flow control valve (optional) |
