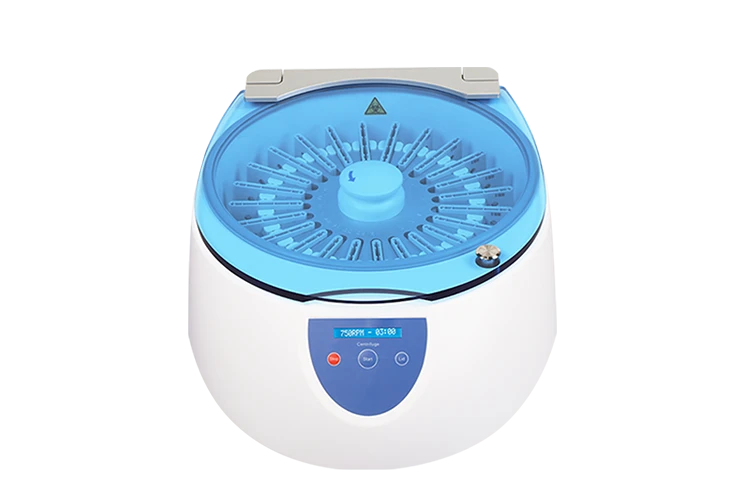

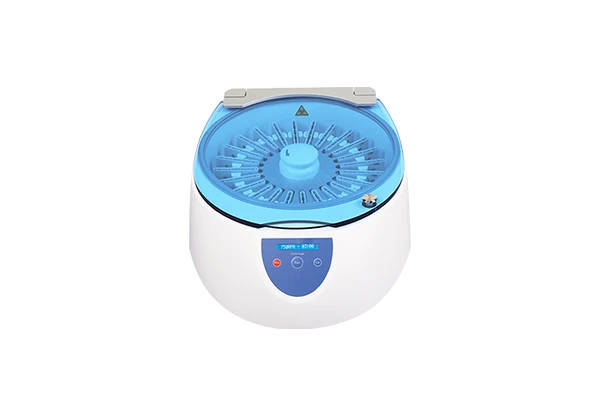

Gel Card Centrifuge
TD2-24
TD2-24 gel card centrifuge is a special centrifuge for blood group card that combines microcomputer control technology and automatic imbalance detection technology. For blood serology, routine blood group detection, red blood cell washing, column agglutination immunodetection experiments, etc. Significant implications for clinical trials and analysis.
-
Capacity 24 gel cards
Features
-
LCD display, brushless DC motor, microcomputer control.
Rotational speed RPM / relative centrifugal force RCF setting can be converted to each other.
According to the needs of the blood group card, two-way / one-way centrifugation can be selected to adapt to the reagent cards.
Low noise and no toner pollution.
Automatic unbalance detection technology, the instrument has automatic unbalance alarm function.
Equipped with electronic door lock, overspeed, system self-check and many other protection functions.
Customers can set standard procedures according to experimental needs to standardize and standardize clinical experimental testing and research.
Customers can freely set 2 stages of speed and time.
| Model | TD2-24 |
| Speed range | 500~1500 rpm |
| RCF. range | 33~294xg |
| Capacity | 24 gel cards |
| Timer | 1~20 min |
| Noise | ≤55 db(A) |
| Power | AC100-240 V 85 W |
| Dimension (L×W×H) mm | 530×410×180 mm |
| Weight | 11.5 kg |
| Code | Product description |
| AS-10010-00 | TD2-24, AC 100~240 V, 50 / 60 Hz, 3 A |
