Liquid Handling Workstation

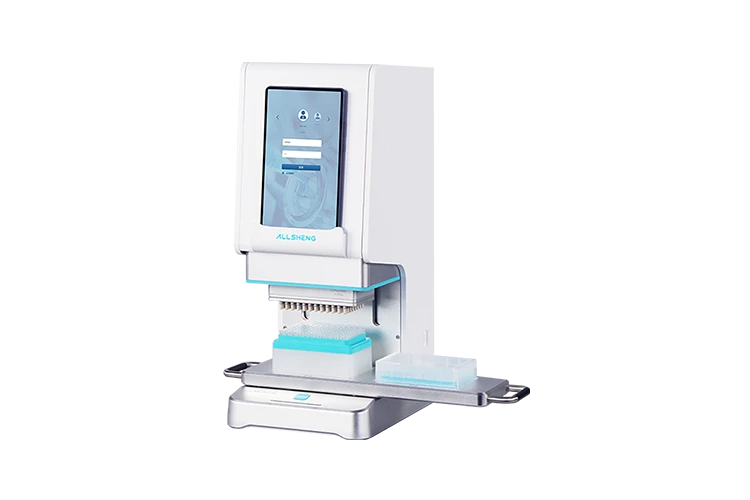

Au-Mate 96 A2
Au-Mate 96 A2 liquid handling workstation provides efficient and precise pipetting operations. Through the external tablet computer, users can easily load and unload of 96-channel pipetting heads, aspirating, and dispensing liquids, eliminating the difference between aspirating and dispensing to improve the repeatability of pipetting. As for the functions, Au-Mate 96 A2 can control the process of loading and unloading pipetting heads, aspirating and dispensing liquids, to dispense liquids and pipetting between different plates. A large amount of repetitive work can be completed in a short time, thereby reducing most of the manual pipetting burden, and significantly improving the sample processing speed and repeatability. Au-Mate 96 A2 supports 20 μL and 200 μL pipetting heads, with a small size, suitable for working on a clean bench.
-
Small size, suitable for working on a clean bench -
Convenient design, easy to replace pipetting heads -
Support wired operation and wireless bluetooth control
Features
| Model | Au-Mate 96A2 |
| Plate number | 2 |
| Adapted pipetting head | Adapt to Au-Pipet N20 & N200 heads |
| Software control mode | Basic mode |
| Channel | 8 / 96 channel |
| Technical principle | Air displacement |
| Available well plate | SBS standard 24 / 96 / 384 deep and shallow well plates |
| Consumables | Matching Allsheng Tip |
| System | Standard 8-inch Android tablet, software adaptive to mainstream size tablet |
| Communication method | CAN communication |
| Power supply | 100~240 V, 50~60 Hz |
| Power | 100 W |
| Wireless control | The instrument has a built-in Bluetooth block, which can be connected wirelessly |
| N.W. (kg) | 26 |
| Size (W×D×H) mm | 475×343×535 |
| Code | Product description |
| AS-22010-00 | Au-Mate 96A2 liquid handling workstation, 2 types of pipetting heads available, 100-240 VAC, 100 W |
Recommended Resources
Liquid Handling Workstation - Selection Guide
Explore More
Product Information
Selection Guide
Model | ||||
Plate number | 2 | 4 | 2 | 4 |
Pipetting head | Adapt to Au-Pipet N20 & N200 heads | Adapt to Au-Pipet N20 & N200 heads | Adapt to Au-Pipet N20, N200 & N1000 heads | Adapt to Au-Pipet N20, N200 & N1000 heads |
Pipetting range | 1~20 μL; 5~200 μL | 1~20 μL; 5~200 μL | 1~20 μL; 5~200 μL; 100~1000 μL | 1~20 μL; 5~200 μL; 100~1000 μL |
