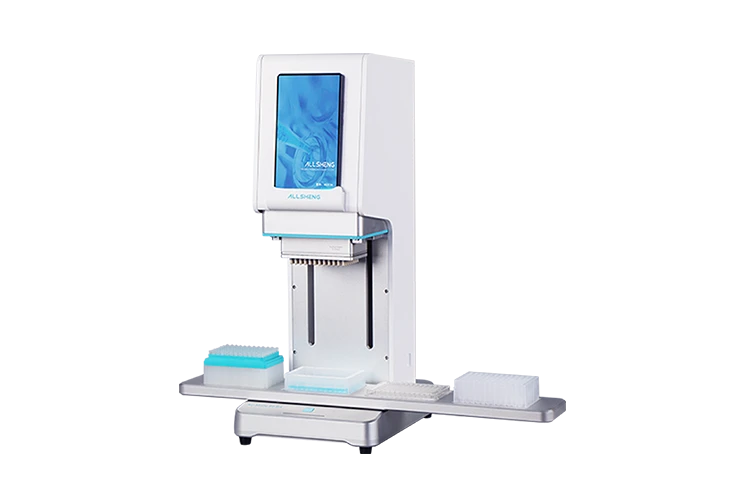

Liquid Handling Workstation
Au-Mate 96 B4
Au-Mate 96 B4 liquid handling workstation can handle precise pipetting operations and complex experimental procedures. Through the external tablet computer, users can easily set up, save and operate the experimental process. Through the software control, the difference between aspirating and dispensing is truly eliminated, which improves the repeatability and efficiency of pipetting. As for the functions, Au-Mate 96 B4 can control the process of loading and unloading pipetting heads, aspirating, dispensing liquids, mix, gradient dilution, wait and cycle, so as to complete complex multi-step experiments. A large amount of repetitive work can be completed in a short time, thereby reducing most of the manual pipetting burden, and significantly improving the sample processing speed and repeatability. Au-Mate 96 B4 supports 20 μL, 200 μL and 1000 μL pipetting heads, higher efficiency for large-volume pipetting needs.
-
Support 20 μL, 200 μL and 1000 μL pipetting heads -
Convenient design, easy to replace pipetting heads -
Support wired operation and wireless bluetooth control
Features
| Model | Au-Mate 96B4 |
| Plate number | 4 |
| Adapted pipetting head | Adapt to Au-Pipet N20, N200 & N1000 heads |
| Software control mode | Basic & advanced mode |
| Channel | 8 / 96 channel |
| Technical principle | Air displacement |
| Available well plate | SBS standard 24 / 96 / 384 deep and shallow well plates |
| Consumables | Matching Allsheng Tip |
| System | Standard 8-inch Android tablet, software adaptive to mainstream size tablet |
| Communication method | CAN communication |
| Power supply | 100~240 V, 50~60 Hz |
| Power | 100 W |
| Wireless control | The instrument has a built-in Bluetooth block, which can be connected wirelessly |
| N.W. (kg) | 33 |
| Size (W×D×H) mm | 690×350×673 |
| Code | Product description |
| AS-22070-00 | Au-Mate 96B4 liquid handling workstation, 3 types of pipetting heads available, 100-240 VAC, 100 W |
Recommended Resources
Liquid Handling Workstation - Selection Guide
Explore More
Product Information
Selection Guide
Model | ||||
Plate number | 2 | 4 | 2 | 4 |
Pipetting head | Adapt to Au-Pipet N20 & N200 heads | Adapt to Au-Pipet N20 & N200 heads | Adapt to Au-Pipet N20, N200 & N1000 heads | Adapt to Au-Pipet N20, N200 & N1000 heads |
Pipetting range | 1~20 μL; 5~200 μL | 1~20 μL; 5~200 μL | 1~20 μL; 5~200 μL; 100~1000 μL | 1~20 μL; 5~200 μL; 100~1000 μL |
