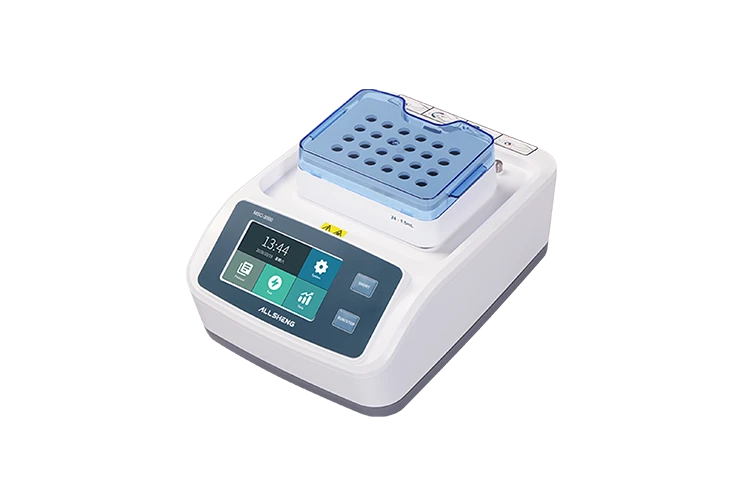

Thermo Shaker Incubator
MSC-3000
MSC-3000 thermo shaker incubator is a comprehensive upgrade to the existing instruments. Superior temperature control, excellent mixing performance, and easy-to-use software ensure complete, reliable, and reproducible experimental results. With Allsheng MateB series modules, it can meet your diverse experimental requirements.
-
Heating / cooling / mixing, temperature control range: 0 °C~105 °C -
Optional thermo lid, enhancing temperature uniformity in tubes

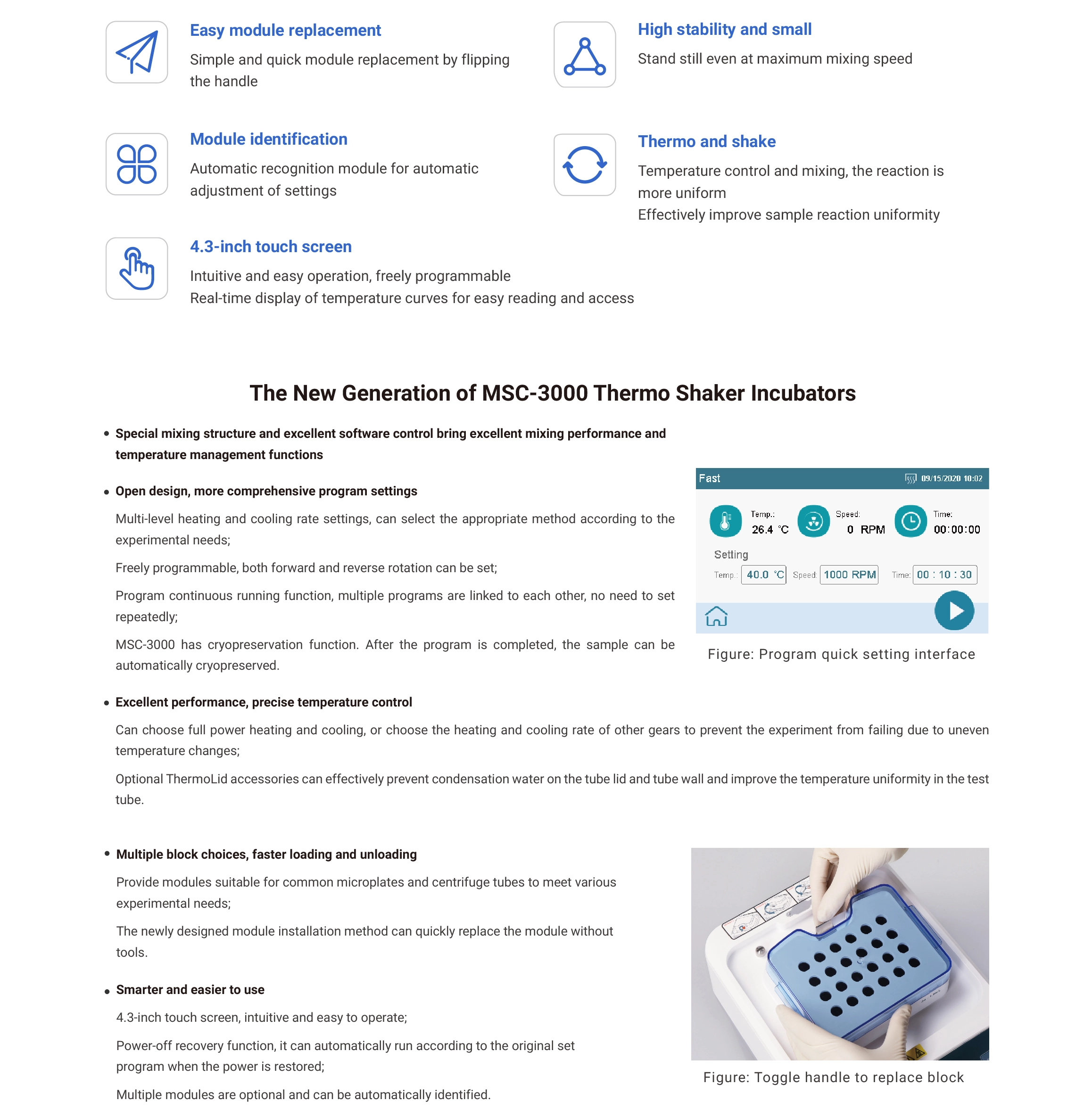

Features
| Model | MSC-3000 |
| Type | Heating / cooling / mixing |
| Temp. control range | 0 °C~105 °C |
| Time setting | 99 h 59 min / 99 min 59 s |
| Temp. control accuracy @20 °C~50 °C | ±0.5 °C |
| Temp. uniformity @20 °C~50 °C | ±0.5℃ |
| Display accuracy | 0.1 °C |
| Heating time 20 °C~100 °C | ≤15 min |
| Cooling time 100 °C~20 °C | ≤15 min |
| Cooling time 25℃~4℃ [1] | ≤20 min |
| Cooling time 20℃~0℃ [2] | ≤20 min |
| Heating rate gear [3] | 5 gears can be set |
| Cooling rate gear [4] | 4 gears can be set |
| Speed [5] | 100-3000 rpm |
| Mixing orbit | 3 mm |
| Program number | 50 |
A single program can be divided into number | 5 |
| Cycle number | 99 |
| Block identification function | Yes |
| Display | 4.3 inch touch screen |
| Port | USB (program related); 4-pin plug (thermo lid related) |
| Thermo lid | Yes (optional) |
| Thermo lid temp. range | RT.+5 °C~110 °C |
| Maximum power | 200 W |
| Net weight (including blocks) | ≤10 kg |
| Dimension (W×D×H) mm | 220×318×154 |
| [1] Indicates detection at ambient temperature ≤ 25 °C | |
| [2] Indicates detection at ambient temperature ≤ 20 °C | |
| [3] 5 gears including: MAX, 3 °C/min, 2 °C/min, 1 °C/min, 0.1 °C/min | |
| [4] 4 gears including: MAX, 1 °C/min, 0.5 °C/min, 0.1 °C/min | |
| [5] The maximum speed varies according to the block used |
| Code | Product description |
| AS-02080-00 | MSC-3000 thermo shaker incubator (heating and cooling type), AC 100~240 V, 200 W |
Selection Guide
Model | ||||||
Type | Heating / cooling / mixing | Heating / mixing | Heating / cooling / mixing | Heating / mixing | Heating / mixing | Heating / mixing |
Temperature control range | 0 °C~105 °C | RT.+5 °C~105 °C | 0 °C~100 °C (AT. ≤20 °C) | RT.+5 °C~100 °C | RT.+5 °C~100 °C | RT.+5 °C~100 °C |
Speed [1] | 100~3000 rpm | 200~3000 rpm | 200~1500 rpm | 200~1500 rpm | 300~3000 rpm | 300~2000 rpm |
Mixing orbit | 3 mm | 3 mm | 2 mm | 2 mm | 2 mm | 3 mm |
[1] The maximum speed varies according to the blocks used
