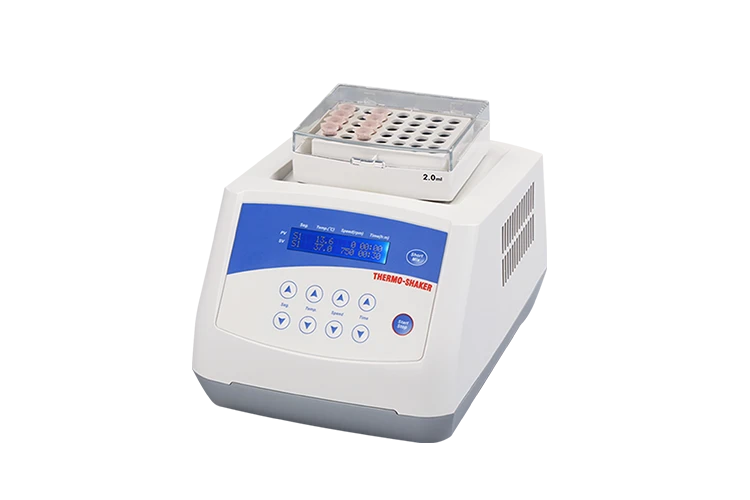

MS-100
-
Heating / mixing, temperature control range: +5 °C to 100 °C -
Speed: 200~1500 rpm
Features
-
LCD display, easy to set up and use.
With power failure recovery function, the instrument can automatically resume operation according to the original set program after power failure recovery.
Microprocessor control, good temperature control linearity, accurate mixing speed and small fluctuation.
With timing function, the cultivation time can be set arbitrarily within the range of 0 to 100 hours.
Easy to replace the blocks and is very simple to clean and sterilize.
Temperature calibration function and short oscillation inching function.
DC brushless motor drive, long life, maintenance-free.
Multiple safety protection functions. Conforms to CE safety standard, safe and reliable.
| Model | MS-100 |
| Temp. control range | RT.+5 °C~100 °C |
| Temp. uniformity | ≤0.5 °C |
| Timer range | 1 min～99 h59 min |
| Temp. control accuracy | ±0.5 °C |
| Display accuracy | ±0.1 °C |
| Shaking speed | 200～1500 rpm* |
| Heating time (40~100 °C) | ≤10 min |
| Mixing orbit | 2 mm |
| Dimension (W×D×H) mm | 300×220×170 mm |
| Weight | 7 kg |
*The upper limit of temperature and shaking speed shall be determined according to the block used
| Code | Product description |
| AS-02010-00 | MS-100 thermo shaker incubator, AC 220 V or AC 120 V, 50 / 60 Hz, 150 W |
Selection Guide
Model | ||||||
Type | Heating / cooling / mixing | Heating / mixing | Heating / cooling / mixing | Heating / mixing | Heating / mixing | Heating / mixing |
Temperature control range | 0 °C~105 °C | RT.+5 °C~105 °C | 0 °C~100 °C (AT. ≤20 °C) | RT.+5 °C~100 °C | RT.+5 °C~100 °C | RT.+5 °C~100 °C |
Speed [1] | 100~3000 rpm | 200~3000 rpm | 200~1500 rpm | 200~1500 rpm | 300~3000 rpm | 300~2000 rpm |
Mixing orbit | 3 mm | 3 mm | 2 mm | 2 mm | 2 mm | 3 mm |
[1] The maximum speed varies according to the blocks used
