Nucleic Acid Purification System

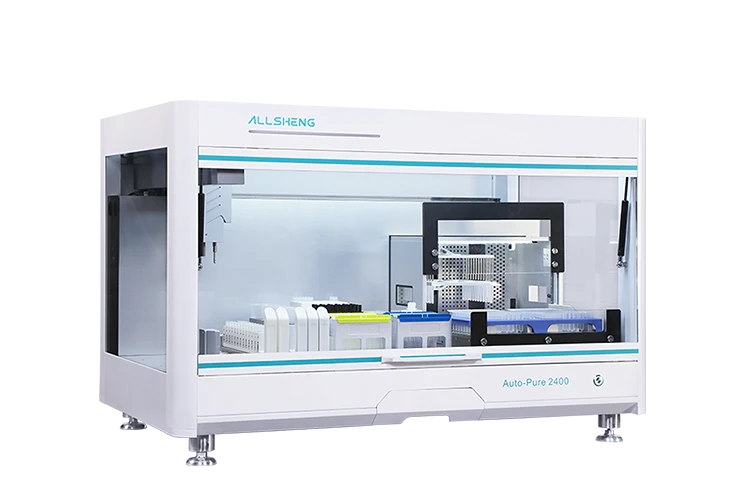

Auto-Pure 2400

Auto-Pure 2400 is a high-throughput automatic nucleic acid extraction equipment, based on the magnetic bead method to extract nucleic acid. The steps of pipetting, lysis, washing, elution and PCR set-up can be automatically completed in the workstation, one-stop operation without manual intervention. It can extract 24×10mL sample system at the same time. The automated operation steps avoid human error, and the experimental results are more reliable and repeatable. In addition, the full-coverage UV sterilization system and negative pressure filter system effectively prevent cross-contamination.

INQUIRY

Automated sample pipetting, nucleic acid extraction, and PCR set-up
Maximum extraction 24×10 mL samples per run, pipetting range: 1~5000 μL

Features

Technical Specifications

Ordering Information

Features

01 Large Volume Extraction to Meet Special Needs

The maximum reaction system of the sample library is 5/10 mL, which can meet the needs of cfDNA extraction.

The elution well is eluted in a small volume to meet the nucleic acid concentration requirements.

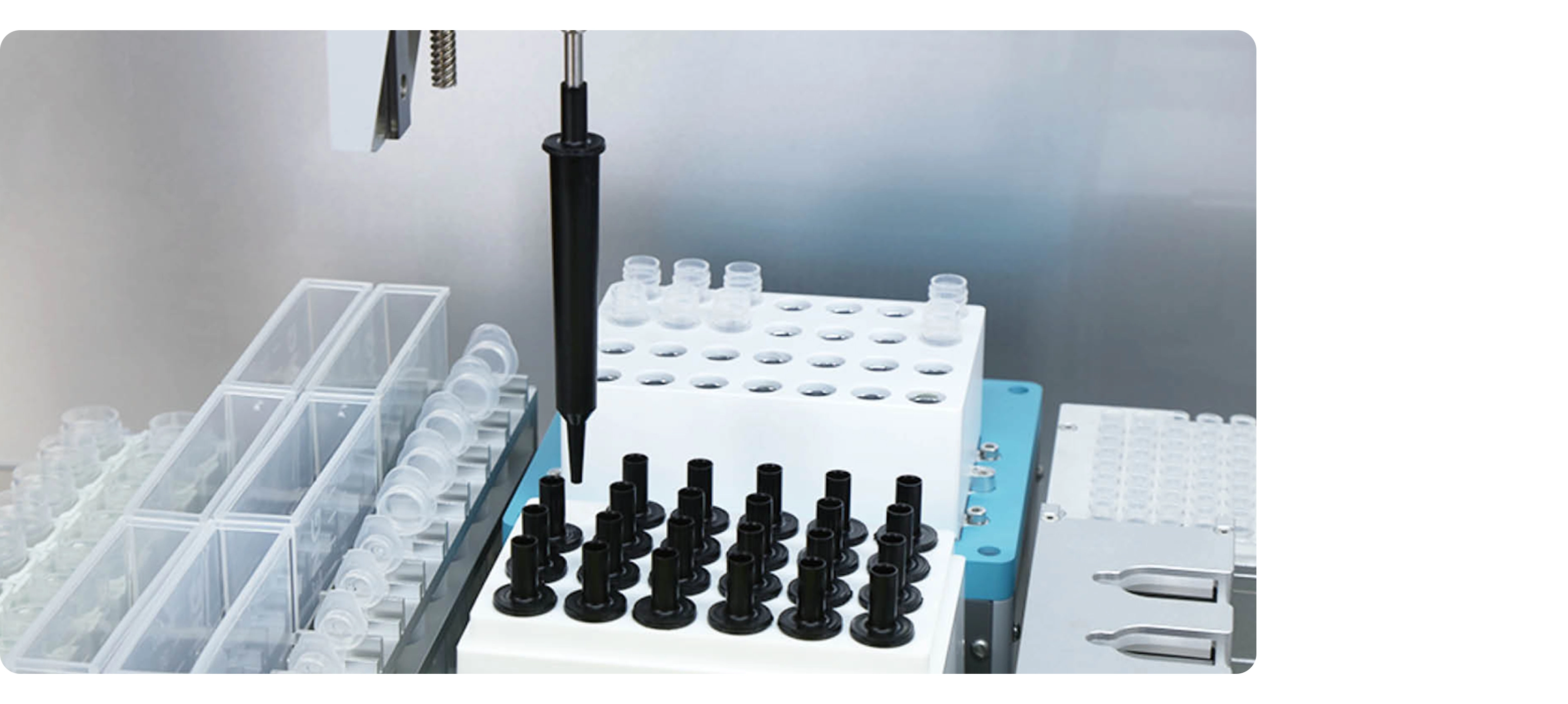

02 High-Precision Pipetting

Dual-channel pipetting design, 1×(50-5000 μL), suitable for 1 mL / 5 mL pipettor and 1×(1-200 μL), suitable for 200 μL pipettor.

The pipettor’s pressure detection technology can not only detect the height of the liquid level, but also empty suction, residual liquid volume and blockage detection.

Detailed pipetting parameter settings for different liquids can effectively improve the accuracy.

03 Easy-to-Learn Operating Software

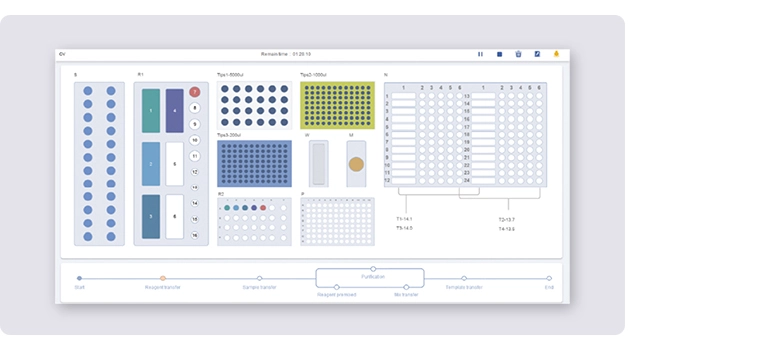

Graphical user interface, program editing can be completed without complicated operations.

Built-in comprehensive libraries of consumable arriers and liquids to reduce customer program matching time.

Users can simply select according to their needs to complete the whole process of pipetting, extraction, and PCR / qPCR setup.

Model	Auto-Pure 2400
Function	Automatic pipette samples and reagents, extract nucleic acid and set-up PCR systems
Information management	Support external USB scanner, barcode scanning function, automatic scanning function
Pipetting principle	Air displacement pipetting technology
Pipettor	One 5000 μL pipettor, one 200 μL pipettor
Pipetting range (μL)	1~5000 μL
Tips	Allsheng tips, and other tips compatible with this instrument
Liquid detection	Pressure detection: liquid level detection, tip clogging detection and residual liquid detection
Samples per run	1~24
Extraction processing volume	50~10000 μL
Extraction uniformity	CV≤5 %
Single sample consumable	Support
Extraction temperature control	Elution, lysis temperature control: RT.~120 ℃
UV sterilization	Separate UV lamp: extraction area, pipetting area and waste container area
Filter	Equipped with three HEPA filters
Instrument port	USB port
Power supply	220 V, 8 A, 50 / 60 Hz
Power	Standby 30 W, maximum 600 W
Noise	≤60 dB
Net weight	130 kg

Code	Product description
AS-17200-00	Auto-Pure 2400

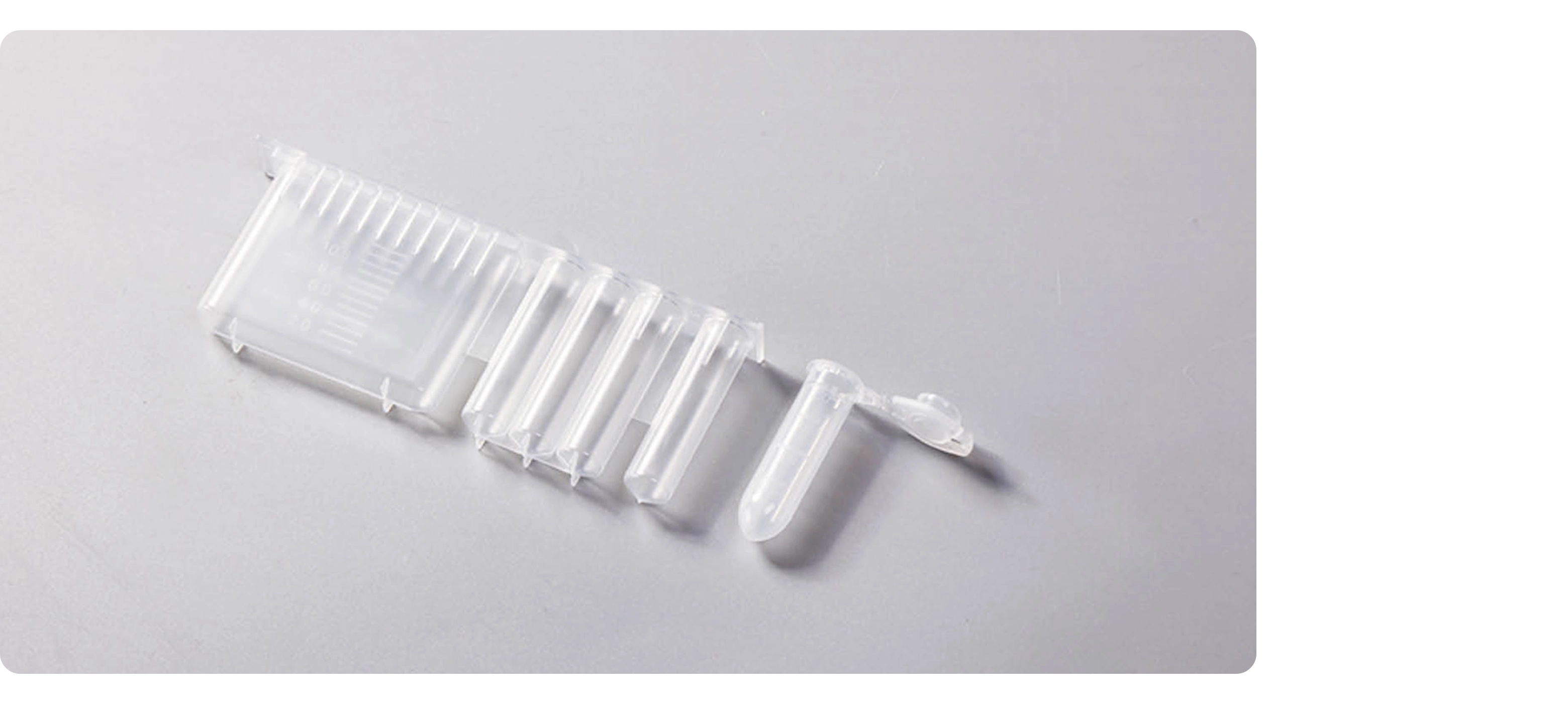

AS-17151-01	10 mL cartridge
AS-17151-02	Magnetic rod comb
AS-17151-03	5 mL cartridge
AS-17151-05	2 mL storage tube
AS-TT-200-N	200 μL tip (transparent, boxed)
AS-TT-1000-N	1000 μL tip (transparent, boxed)
AS-TT-5000C-NL-LB	5000 μL conductive tip (conductive, SBS box, low adsorption)
AS-17202-01	5 mL sample tube
AS-17202-02	1.5 mL centrifuge tube
AS-17202-03	2 mL centrifuge tube
AS-17202-04	7 mL centrifuge tube
AS-17202-06	8-strip PCR tube (0.2 mL)
AS-17202-07	15 mL wide-mouth plastic bottle
AS-17202-08	100 mL reservoir
AS-17202-09	Medical waste packaging bag
AS-17202-10	4000 μL tip
RS-HSCF0101	Nucleic acid extraction or purification reagents (1 mL) 10 T, 24 T, 50 T, 100 T
RS-HSCF0102	Nucleic acid extraction or purification reagents (2 mL) 24 T, 50 T
RS-HSCF0104	Nucleic acid extraction or purification reagents (4 mL) 24 T, 50 T
