Dry Bath Incubator
Au-Heater

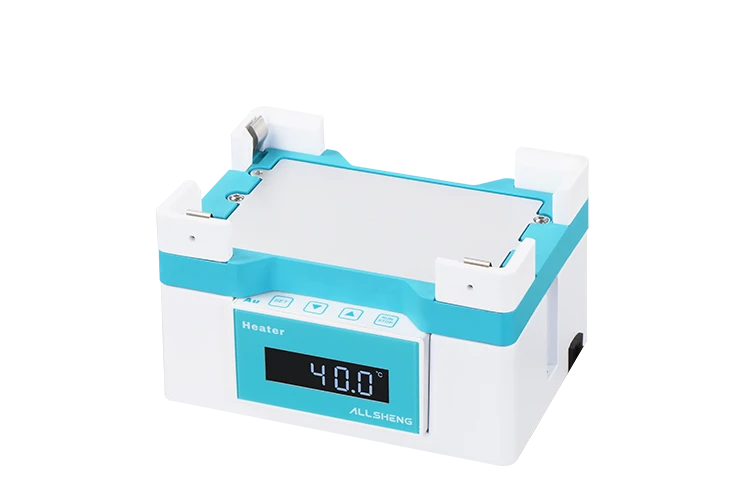

Au-Heater dry baths for workstation, suitable for heated dry baths in laboratory automation systems. It has its own display screen, which is easy to read programmed or measured parameters and can be used alone. It has a DB9 interface with CAN communication, which can be used for online communication with automation workstations of various manufacturers.
Features
| Model | Au-Heater |
| Temperature control range | RT.+5 °C~105 °C |
| Temperature setting | ±0.1 °C |
| Time setting | 99 h59 min or 99 min59 s |
| Heat-up time | RT.~ 95 °C ≤10 min |
| Temperature uniformity | ≤1 °C @55 °C |
| Temperature accuracy | ±0.5 °C |
| Workstation use | DB9 port, CAN communication |
| Stand-alone use | Support |
| Input power | 24V DC,120 W |
| Signal line | 2 m cable, controlled by workstation |
| Size/mm | 142×105×77 |
| Code | Product description |
| AS-23020-00 | Au-Heater dry baths for workstation (heating), with CAN communication |
