Dry Bath Incubator
Au-Cooler

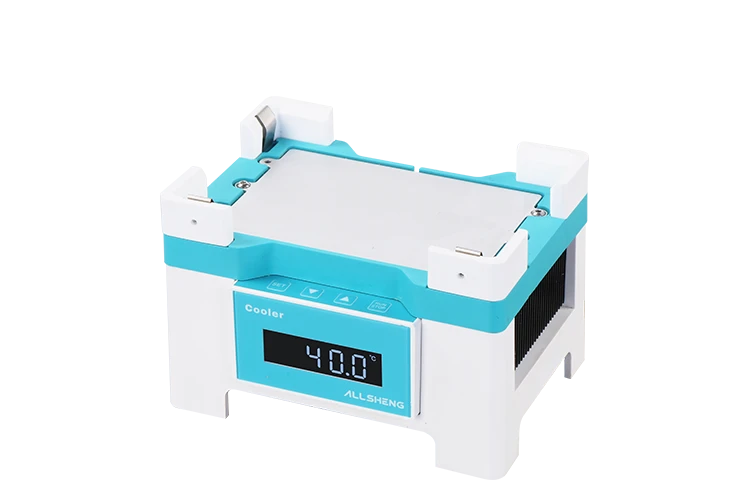

Au-Cooler dry baths for workstation is suitable for the heating / cooling dry baths of laboratory automation system. The instrument has its own display screen, which is easy to read programmed or measured parameters and can also be used alone; it has a DB9 interface with CAN communication, which can be used for online communication with automation workstations of various manufacturers.
Features
| Model | Au-Cooler |
| Temperature control range | 0 °C~105 °C |
| Temperature setting | ±0.1 °C |
| Time setting | 99 h59 min or 99 min59 s |
| Heat-up time | 25 °C~95 °C ≤8 min |
| Heat-up time | 4 °C~25 °C ≤3 min |
| Cooling time | 95 °C~25 °C ≤8 min |
| Cooling time | 25 °C~4 °C ≤8 min |
| Setting accuracy | ±0.1 °C |
| Temperature uniformity | ≤1 °C @55 °C |
| Temperature precision | ≤0.5 °C |
| Workstation use | DB9 port, CAN communication |
| Stand-alone use | Support |
| Input power | 24V DC,160 W |
| Signal line | 2 m cable, controlled by workstation |
| Size/mm | 142×105×82 |
| Code | Product description |
| AS-23010-00 | Au-Cooler dry baths for workstation (heating/cooling), with CAN communication |
