Thermo Shaker
Au-Shaker 3020TL

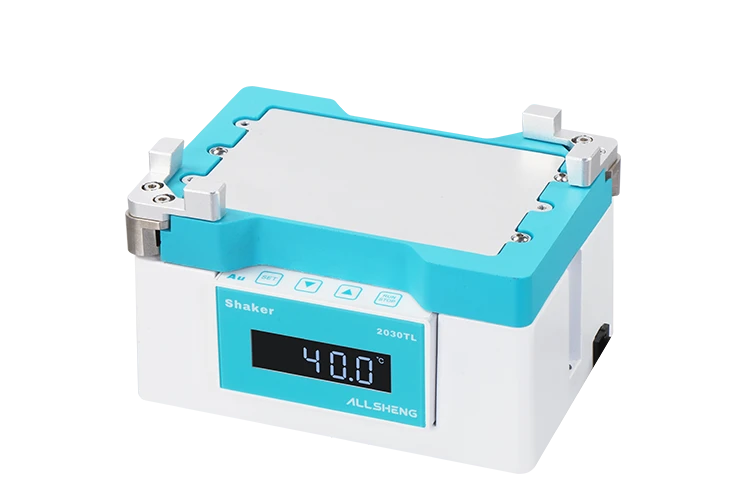

Au-Shaker 3020TL automatic locking thermo shaker incubator for workstation (heating), whose manipulator can easily grab and place the microplate, can locks the microplate and shakes it evenly.
Features
| Model | Au-Shaker 3020TL |
| Speed/rpm | 200~3000 |
| Mixing orbit/mm | 2.0 |
| Temperature control range | RT.+5 °C~105 °C |
| Temperature setting | 0.1 °C |
| Heat-up time [1] | RT.~ 95 °C ≤10 min |
| Temperature uniformity [2] | ≤1 °C @55 °C |
| Temperature precision | ≤0.5 °C |
| Time setting | 99 h59 min or 99 min59 s |
| Speed accuracy | ±25 rpm |
| Acceleration time | 1~10 sec |
| Module locking method | Edge locking |
| Zero positioning function | Zero automatic positioning function |
| Zero positioning time | 1~10 sec |
| Zero positioning accuracy | ±0.1 mm |
| Automatic locking function | Automatic locking function is convenient for manipulators to grasp |
| Locking positioning accuracy | ±0.1 mm |
| Workstation use | Support workstation use, DB9 port, CAN communication or stand-alone use |
| Input power | 24V DC,120 W |
| Signal line | Shaker, 2 m cable, DB9 port, controlled by workstation |
| Size/mm | 142×105×94 |
| [1] | The heating and cooling speed is related to the type of block. This indicator is tested in 0.5+1.5 mL block |
| [2] | According to different blocks, the temperature uniformity index is different |
| Code | Product description |
| AS-23150-00 | Au-Shaker 3020TL automatic locking thermo shaker incubator for workstation (heating), 24V DC 120 W, with CAN communication |
