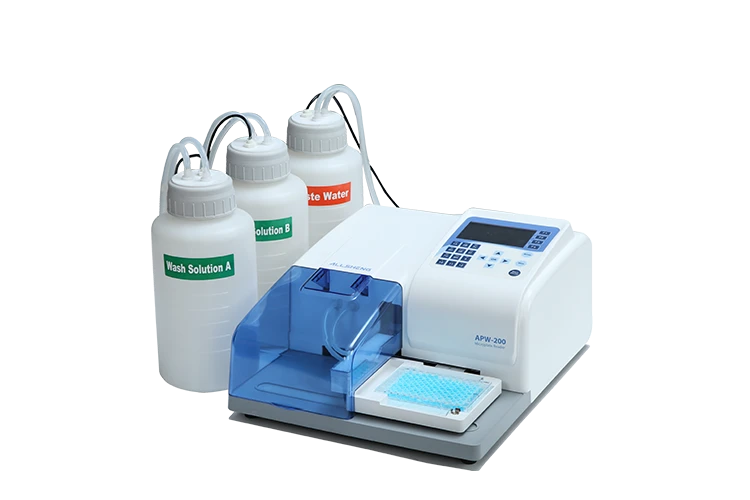

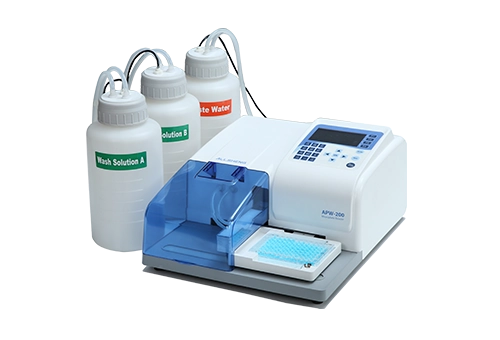

APW-200
-
Suitable for multiple microplate specifications: flat, U-shaped, V-shaped, and C-shaped bottom -
Simple operation, clean different types of microplates per run
Features
-
Good and Efficient Plate Washing Effect
Low residual liquid volume, with an average of ≤1 μL per well. Eliminate high background signals to ensure reliable analysis results.
Stacking the soaking and shaking functions of microplates can improve the efficiency of plate washing.
Residual liquid cleaning function, supporting pipeline flushing and distilled water washing, ensuring that the cleaning effect is not affected by previous cleaning interference.
Easy to Operate, Cleaning Different Types of Microplates at Once
Adopting a 4.3 inch color LCD screen display, intuitive user interface and easy to understand.
The uniform volume scale design of the detergent bottle facilitates the preparation of working solution.
Washing head can be quickly replaced, making it easy to clean different types of microplates, suitable for different application requirements.
With pause function, it can pause the current program or continue execution.
Can automatically store 100 user washing programs, select and use them immediately.
Careful Functions Ensure Performance
The built-in filter screen and automatic flushing function in the washing bottle pipeline prevent the washing solution from blocking the pipeline.
Built in liquid level sensor, real-time monitoring of washing liquid and waste liquid, reducing the risk of liquid overflow and preventing washing liquid from being sucked into the pump body and damaging the instrument.
The instrument is equipped with an alarm function for running out of cleaning solution and liquid waste reaching full capacity.
The instrument comes with a USB flash card, which can be used to transfer programs and update internal software between a PC and a microplate washer, or between multiple microplate washers.
| Model | APW-200 |
| Residual liquid | ≤1 μL |
| Washing heads | 1×8 or 1×12 heads |
| Plate types | Flat, U, V, C bottom |
| Washing method | Single-point, two-point and multi-point |
| Washing volume | 50-2000 μL, increase by 50 μL |
| Washing times | 1~99 times |
| Washing channels | 3 |
| Bottles | 3 pcs 2.5 L washing bottle, 1 pcs 2.5 L waste bottle |
| Dispense accuracy | ≤2 % @300 μL |
Liquid injection accuracy | CV≤1.5 % @300 μL |
| Soaking and shaking time | 99'00" |
| Date connection | USB |
| Weight | 12 kg |
| Power supply | AC100-240 V; 50/60 Hz |
| Code | Product description |
| AS-16020-00 | APW-200 microplate washer AC100-240 V, 50/60 Hz |
| AS-16011-01 | 8 needles washing head |
| AS-16011-02 | 12 needles washing head |
| AS-16011-03 | Washing liquid bottle |
| AS-16011-04 | Waste liquid bottle |
