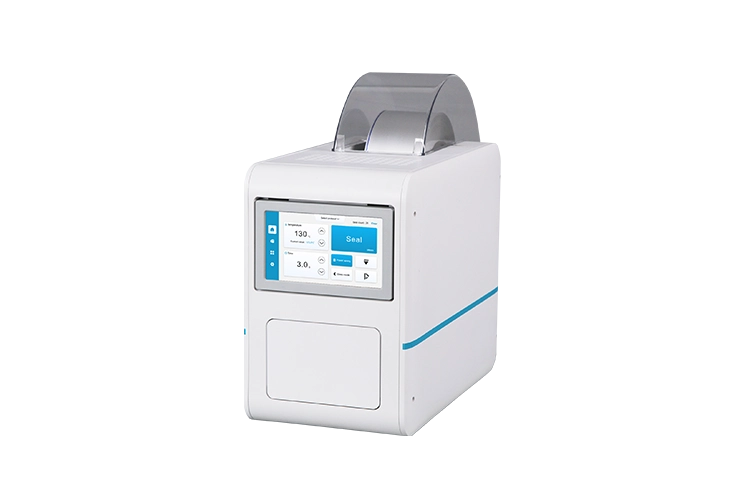

SealBio-3
-
Suitable for: Allsheng 2, 8, 15, 20 mL cartridges -
Film type: puncturable film
Features
-
User-friendly operation interface, 7-inch color touch screen.
Editable and pre-stored sealing solution, effectively saving time.
Equipped with automatic standby function, it can reduce energy consumption and effectively delay instrument aging.
With Ethernet port, it can be connected to an automation system.
Support multiple cartridge sealing, adjustable film length.
Built-in electronic vacuum pump, eliminating the need for an external air source, making installation and transfer more flexible and convenient.
| Model | SealBio-3 |
| Support consumables | AS6.201.0000370, 2 mL cartridge; AS6.201.0000360, 8 mL cartridge; AS6.201.0000350, 15 mL cartridge; AS6.201.WX00310, 20 mL cartridge |
| Support roll film-film type | Puncturable film |
| Support roll film-film width | 78 mm |
| Film sealing temperature-temperature range | RT.~200 °C |
| Film sealing temperature-temperature control accuracy | ±1 °C |
| Film sealing temperature-accommodative amplitude | 1 °C |
| Pre-heating time | ≤5 min |
| Cycle time | <20 s / time |
| Adjustable film sealing time-time range | 0.5~9.9 s |
| Adjustable film sealing time-accommodative amplitude | 0.1 s |
| Air source method | Built-in air source |
| Port | 1×USB-B port and 1×Ethernet port |
| Power supply | AC100~240 V, 50 / 60 Hz |
| Maximum power | 450 W |
| Software operation | 7-inch touch screen software (resolution 1024*600) / edit sealing scheme / prestored sealing scheme |
| Safety | Standby function (low power mode) / detection of plate / detection of roll film |
| Code | Product description |
| AS-15030-00 | SealBio-3 automated sealer |
Related Products
Selection Guide
Model | |||
Automation | Semi automated | Automated | Automated |
Supported plate | ANSI / SBS standard plate, height range 3~62 mm (ELISA plates, cell culture plates, PCR plates, 96-well deepwell plates, etc.) | ANSI / SBS standard plate, height range 3~62 mm (ELISA plates, cell culture plates, PCR plates, 96-well deepwell plates, etc.), Auto-Pure series 10 mL cartridges / 5 mL cartridges / 3 mL cartridges, etc. | Leap-Pure series 2 mL cartridges / 8 mL cartridges / 15 mL cartridges / 20 mL cartridges |
Support film type | Foil-polyproylene laminate, clear polyester-polypropylene laminate, clear polymer, thin clear polymer | Various aluminum foil films / fluorescence PCR transparent films | Film / puncturable film |
Film sealing temperature | 80~200 °C (increase 1.0 °C) | RT.~200 °C (increase 1.0 °C) | RT.~200 °C (increase 1.0 °C) |
