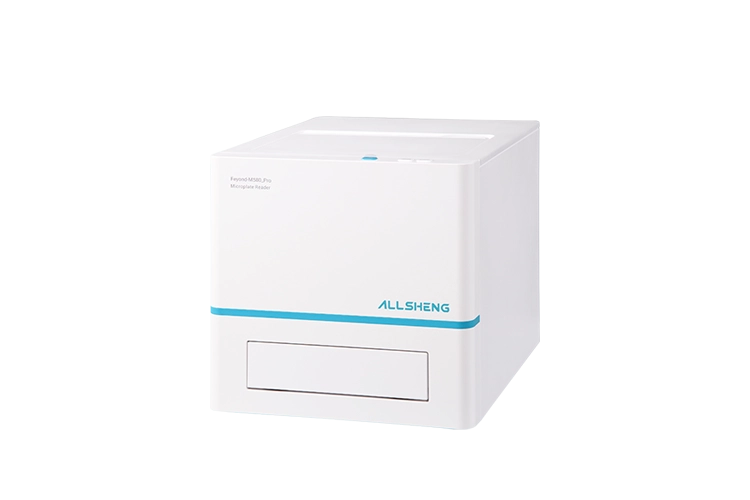

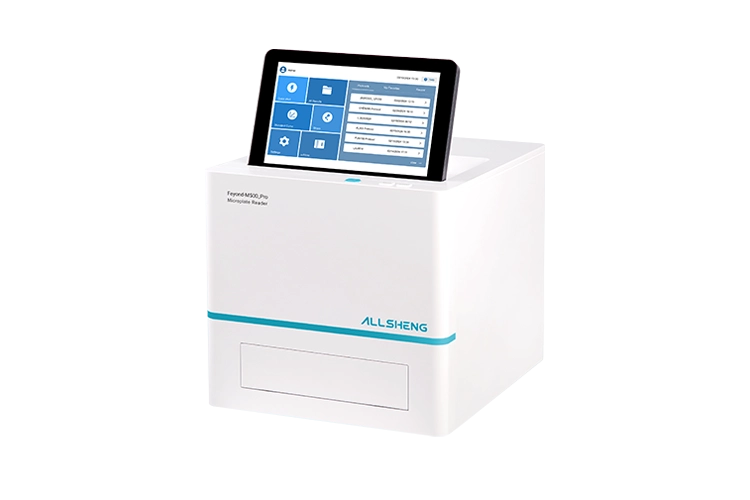

Feyond-M500_Pro

Using the monochromator design, it only need 15 s for continuous spectral scanning in 1 nm increments between 190~1000 nm. It supports ultraviolet to near-infrared spectrum analysis, and the wavelength can be freely selected to easily realize various application detection. In addition, the linear correlation coefficient can reach more than 0.999 within 0-3.5OD.

Utilizing a combination of xenon lamps, filters, and high-sensitivity photomultiplier tube (PMT), this system significantly enhances detection sensitivity. The automated filter wheel design supports up to 8 excitation and emission filter combinations, offering 64 customizable configurations without manual module replacement. It enables simultaneous detection of 8 fluorescence channels per cycle, effortlessly achieving both fluorescence intensity and FRET (Fluorescence Resonance Energy Transfer) measurements.

For multi-channel detection applications, the software has two reading modes, which can be selected to read by well or by plate according to experimental needs.

Utilizing a LUM PMT detector with BRET filters and customized data analysis algorithms, it enables the detection of multicolor luminescence experiments. The 8-position filter wheel design allows both direct measurement and customization of alternative wavelength filters. At the same time, the instrument can be combined with an automatic injector to realize the efficient detection of flash reagent kits

The high-energy pulsed xenon lamp, combined with customized TR-FRET filters, effectively reduces background noise. Dedicated analysis algorithms correct for sample-related errors and improve data processing efficiency. The 8-position filter wheel design supports multiple lanthanides.

It adopts a unique optical path design to effectively reduce detection bias, and has advantages in studying receptor / ligand binding, protein interaction and DNA / protein binding. Based on different needs, users can choose the model Pro with BRET filters or the model Plus with TR-FRET filters.

There are three types of shaking modes: linear, circular, double circular, and a variety of shaking speeds (rpm) can be freely selected, which is more conducive to the realization of kinetic background vibration of different types of samples.

The scanning detection method of up to 900 points per well is realized by using flexible orbital motion and accurate detection site, which reduces the difference reading caused by different positions.

Using built-in algorithms, automatically convert absorbance values measured at different solution volumes in the plate to equivalent values at a 1 cm optical pathlength.

Key Configuration

Quickly complete high-throughput quantification of nucleic acid and proteins without samples dilution.

Independent lower computer software, can quickly read the sample concentration and purity report.

16 / 96 samples can be detected at the same time, only 2~4 μL sample volume is needed.

ABS optical performance validation plate is mainly used to comprehensively evaluate the performance of absorbance function. It can conveniently, quickly and easily check whether absorbance function of the instrument is working properly. It is suitable for the system check of installation and operation qualification.

Equipped with dual automatic injector modules of the instrument is critically important for a myriad of assays, most notably flash luminescence and Ca²⁺ flux assays etc. The instrument is equipped with a standard injector module, which can meet the precise sample addition operation of 384-well plates and realize the possibility of rapid detection of high-throughput plates.

The automatic injector module can be purchased separated with the device and can also be upgraded later.

Liquid injection protection: The software has a liquid injection protection function to effectively prevent the risk of sample overflow.

Lum-Check standardization light microplate can rapidly check and verify the luminescence function of instruments, ensuring reliable performance.
