Automated Sealer
SealBio-1

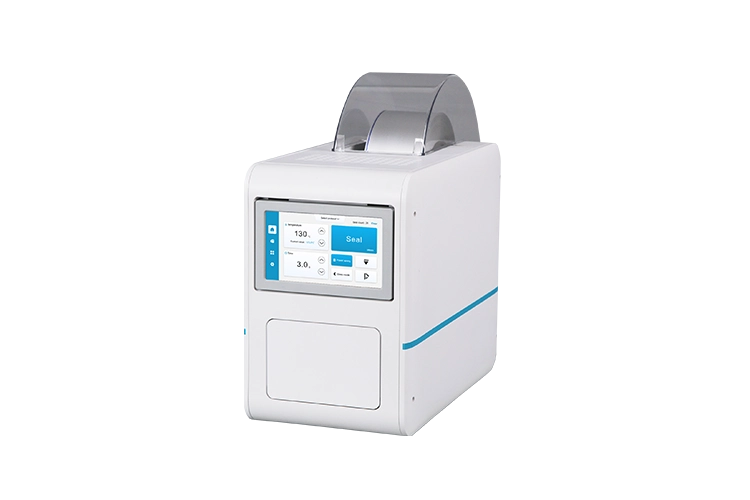

SealBio-1 automated sealer is a device for rapid and continuous sealing of microplates. It can be adapted to ANSI, SBS standard 12-well, 24-well, 48-well, 96-well and 384-well plates with height range of 3~62 mm, including all kinds of PCR plates, ELISA plates, deepwell plates, cell culture plates, etc. It supports the use of 78~84 mm various aluminum foil films / fluorescence PCR transparent films.
Suitable for pre-filled of biochemical reagents, sealing film before PCR assays, long-term storage of samples, and other experimental applications that require sealing of reagents.
-
Supported plates: ANSI / SBS standard plate, height range 3~62 mm -
Film type: various aluminum foil films / fluorescence PCR transparent films
Features
-
RT.~200 °C free setting, to meet the needs of different film sealing applications.
Automatic preloading of film, continuous operation up to 5000.
Sealing cycle time <20 sec.
Built-in independent air source, no need to connect other equipment.
Touch screen operation, graphical interface is easier to use.
Program storage function to save different types of film parameters for quick recall.
Standard roll film protection cover to avoid film surface contamination.
Can be used alone or integrated into automated systems.
Reagent Production Supporting Products
| Model | SealBio-1 |
| Supported plates | ANSI / SBS standard plate, height range 3~62 mm |
| Support roll film-film type | Puncturable film / aluminum foil film / strong heat sealing film |
Support roll film-film width | 78~84 mm |
| Support roll film-loading method | Automatic preloading of roll film |
| Film sealing temperature-temperature range | RT.~200 °C |
| Film sealing temperature-temperature control accuracy | ±1 °C |
| Film sealing temperature-accommodative amplitude | 1 °C |
| Pre-heating time | 5 min |
| Cycle time | <20 seconds / time |
| Adjustable film sealing time-time range | 0.5~9.9 seconds |
| Adjustable film sealing time-accommodative amplitude | 0.1 seconds |
| Air source method | Built-in air source |
| Port | 1×USB-B port and 1×Ethernet port |
| Power supply | AC 110 V / 220 V, 50 / 60 Hz |
| Maximum power | 300W |
| Software operation | 7-inch touch screen software (resolution 1024*600) / edit sealing scheme / prestored sealing scheme |
| Safety | Standby function (low power mode) / detection of plate / detection of roll film |
| Code | Product description |
| AS-15010-00 | SealBio-1 automated sealer |
Related Products
Selection Guide
Model | |||
Automation | Semi automated | Automated | Automated |
Supported plate | ANSI / SBS standard plate, height range 3~62 mm (ELISA plates, cell culture plates, PCR plates, 96-well deepwell plates, etc.) | ANSI / SBS standard plate, height range 3~62 mm (ELISA plates, cell culture plates, PCR plates, 96-well deepwell plates, etc.), Auto-Pure series 10 mL cartridges / 5 mL cartridges / 3 mL cartridges, etc. | Leap-Pure series 2 mL cartridges / 8 mL cartridges / 15 mL cartridges / 20 mL cartridges |
Support film type | Foil-polyproylene laminate, clear polyester-polypropylene laminate, clear polymer, thin clear polymer | Various aluminum foil films / fluorescence PCR transparent films | Film / puncturable film |
Film sealing temperature | 80~200 °C (increase 1.0 °C) | RT.~200 °C (increase 1.0 °C) | RT.~200 °C (increase 1.0 °C) |
