Nucleic Acid Purification System

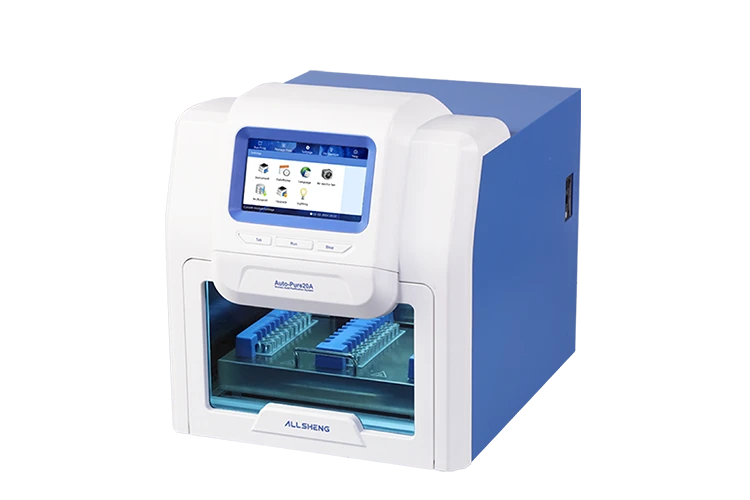

Auto-Pure 20A
Auto-Pure 20A nucleic acid purification system extracts and purifies nucleic acids based on magnetic bead method. Based on 32A, it improves sample processing volume with a maximum processing volume of 3 mL. With specially designed 9-strip cartridges, it can purify 1 to 20 samples simultaneously. It supports single sample nucleic acid extraction, suitable for research institutions.
20B and 24D are with maximum processing volume of 5 mL and 10 mL, respectively, making them ideal for cfDNA extraction, nucleic acid sample library preparation, blood nucleic acid screening, and nucleic acid hypersensitivity detection.
-
Throughput: 1~20, maximum processing volume: 3 mL -
Support 2 mL cartridges + magnetic rod comb
Features
-
Stand-alone operation, 7-inch color touch screen display, easy to use.
Customize the temperature and program according to the requirements.
Short operation time, 15-30 min/time, can extract up to 20 samples in one run.
High yield of nucleic acid, low loss of magnetic beads, and good reproducibility of results.
UV sterilization function to avoid cross-contamination.
Open system, suitable for various magnetic bead extraction reagents.
Drawer design to prevent possible injuries.
APP software will be configured to monitor the system in real time through mobile devices.
| Model | Auto-Pure 20A |
| Throughput | 1~20 |
| Process volume | 50~3000 μL |
| Consumables | 3 mL cartridge + magnetic rod comb |
| Working principle | Magnetic bead method, magnetic rod type / up and down mixing |
| Software security | Operating system encryption function can effectively prevent malicious tampering with parameters and programs |
| Purification accuracy | 100 copy sample positive rate > 95 % |
| Stability | CV<5 % |
| Collection efficiency | >95 % |
| Lysis temperature | RT.~120 °C |
| Elution temperature | RT.~120 °C |
| Mixing | Mixing ways can be editable |
| Operation interface | 7-inch touch screen, 3 shortcut buttons and mouse is available |
| Built-in program | 8 groups of preset programs, 100 groups of programs can be stored |
| Program management | New, edit, delete, save as |
| Expansion interface | Standard USB, ethernet port and WIFI are available |
| Lighting | Yes |
| Sterilization | UV light |
| Exhaust way | Fan |
| Data storage | Available, with built-in SD card |
| Max. input power | 450 W |
| Dimension (W×D×H) | 40 cm×52 cm×45 cm |
| Weight | 30 kg |
| Code | Product description |
| AS-17040-00 | Auto-Pure 20A nucleic acid purification system |
| AS-17041-01 | Cartridge for Auto-Pure 20A |
| AS-17041-02 | Megnetic rod comb for Auto-Pure 20A / 20B |
| AS-17100-00 | FCM-1 film cutting machine |
| AS-15020-00 | SealBio-2 semi automated plate sealer |
| AS-15021-03 | SBA-3 weighted sealing platen |
| AS-15021-04 | Adapter for Auto-Pure 20 series cartridge |
| AS-15021-11 | Seal-150 peelable clear seal |
| AS-15021-12 | Seal-200 peelable seal for storage |
| AS-15021-13 | Seal-300 pierce Aluminum heating sealing film |
Recommended Resources
Nucleic Acid Purification System - Selection Guide
Explore More
Product Information
Selection Guide
Model | |||||
Throughput | 1~24 | 1~20 | 1~20 | 1~10 | 1~10 |
Processing volume | 50~10000 μL / 50~5000 μL | 50~5000 μL | 50~3000 μL | 50~5000 μL | 50~5000 μL |
Consumables | 5 mL / 10 mL cartridge + magnetic rod comb | 5 mL cartridge + magnetic rod comb | 2 mL cartridge + magnetic rod comb | 5 mL cartridge + magnetic rod comb | 5 mL cartridge + magnetic rod comb |
Other functions | - | - | - | - | Dry bath function |
