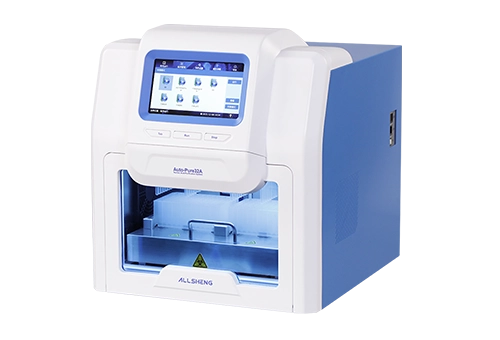

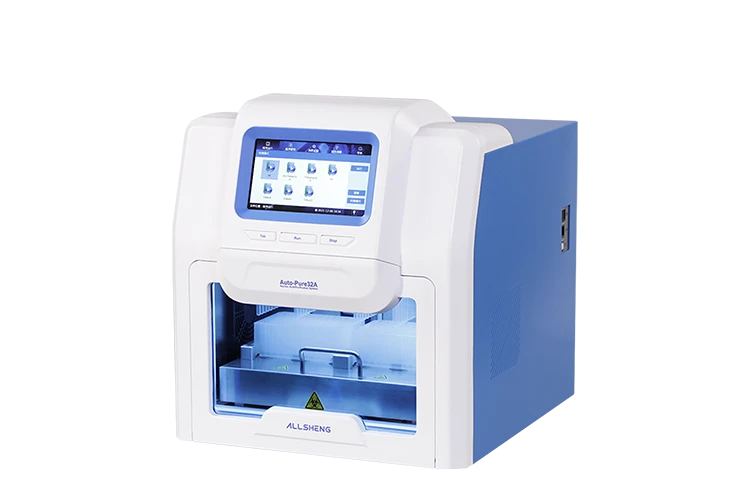

Nucleic Acid Purification System
Auto-Pure 32A
Auto-Pure 32A nucleic acid purification system is a device for extracting and purifying nucleic acid by magnetic bead method. It has the advantages of high automation, fast extraction speed, stable results and simple operation. Using 96 deepwell plate, 1-32 samples can be purified simultaneously. DNA and RNA in animal and plant tissues, blood, body fluids and criminal samples can be extracted quickly with different kinds of magnetic bead nucleic acid reagents. It is widely used in scientific research, disease control system, food safety, forensic medicine, clinical monitoring and other fields.
-
Throughput: 1~32, maximum processing volume: 1 mL -
96 deepwell plate + magnetic rod comb
Features
-
Stand-alone operation, 7-inch color touch screen display, easy to use.
Customize the temperature and program according to the requirements.
Short operation time, 15-30 min/time, can extract up to 32 samples in one run.
High yield of nucleic acid, low loss of magnetic beads, and good reproducibility of results.
UV sterilization function to avoid cross-contamination.
Open system, suitable for various magnetic bead extraction reagents.
Drawer design to prevent possible injuries.
APP software will be configured to monitor the system in real time through mobile devices.
PCR Detection General Solution
| Model | Auto-Pure 32A |
| Throughput | 1~32 |
| Process volume | 50~1000 µL |
| Consumable | 96 deepwell plate+magnetic rod comb |
| Principle / working mode | Magnetic bead method, magnetic rod method / up and down mixing |
| Software security design | Operating system encryption function can effectively prevent malicious tampering of parameters and programs |
| Anti-pollution design | 6 fan convection design, effectively prevent aerosol pollution |
| Purification accuracy | 100 copy sample positive rate >95 % |
| Stability | CV <5 % |
| Lysis temperature | RT.~120 °C |
| Elution temperature | RT.~120 °C |
| Operation | 7-inch touch screen, 3 shortcut keys, external mouse |
| Internal program | Preset 8 programs, max store 100 programs |
| Protocol management | New, edit, delete, save as |
| Extension interface | Standard USB, ethernet port and WIFI are available |
| Lighting | Yes |
| Sterilization | UV light |
| Exhaust way | Fan |
| Data storage | Available, with built-in SD card |
| Max. input power | 450 W |
| Dimension | 40 cm×47 cm×45 cm |
| Weight | 28 kg |
| Code | Product description |
| AS-17030-00 | Auto-Pure 32A nucleic acid purification system |
| AS-17031-01 | 96-deepwell plate for Auto-Pure 32A / 16A |
| AS-17031-02 | Magnetic rod comb for Auto-Pure S32 / 32A / 16A / Mini |
Recommended Resources
Nucleic Acid Purification System - Selection Guide
Explore More
Product Information
Selection Guide
Model | ||||
Throughput | 1~16 | 1~16 | 1~32 | 1~32 |
Processing volume | 20~1000 μL | 50~5000 μL | 30~1000 μL | 50~1000 μL |
Consumables | 8-tip comb 96 deepwell plate / single cartridge | 96 deepwell plate + magnetic rod comb | 96 deepwell plate + magnetic rod comb | 96 deepwell plate + magnetic rod comb |
Other functions | Can be connected to an app for use | - | Scanning function | - |
