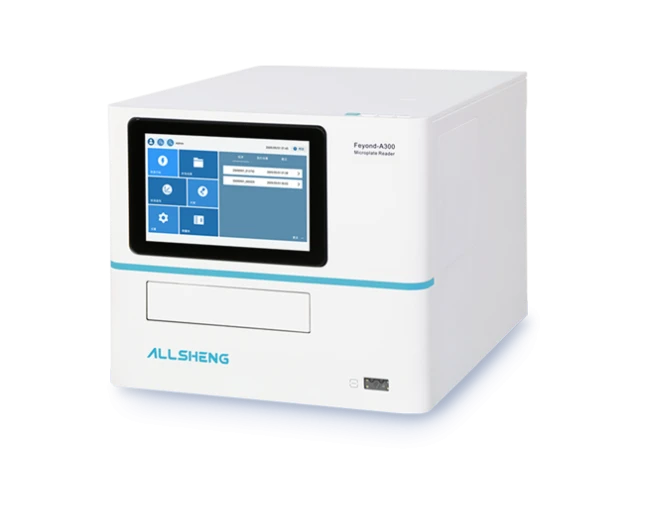

Multi-Mode Microplate Reader
Feyond series multi-mode microplate reader is specially designed for medical, biological and pharmaceutical research and development institutions to meet the needs of various drug development and life science research. The high-quality detection performance ensures high-quality analysis based on molecular biology, biochemistry and cytology.
In addition to the most basic absorbance, fluorescence and luminescence detection functions, high-performance fluorescence polarization and time-resolved fluorescence detection can also be selected. The instrument is compatible with the client-side modular upgrade function, and users can upgrade and equip with microplates and automatic injectors according to their needs.
Overview
Technology
Wavelength selection is done by using an advanced monochromator system. Any wavelength between 200 to 1000 nm can be selected. Using the spectral scanning feature, the whole spectrum of a sample be scanned in 1 nm increments to allow identification of the optimal measurement wavelength for a new assay.

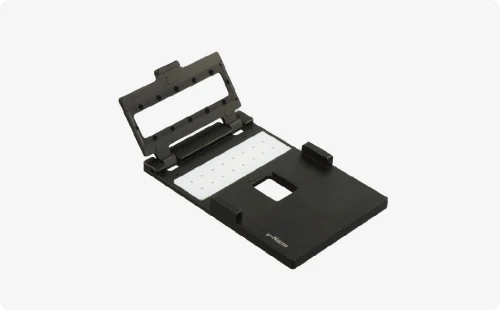

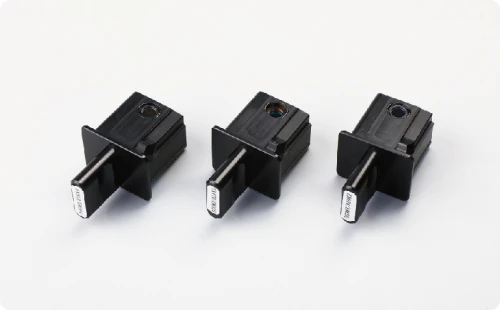

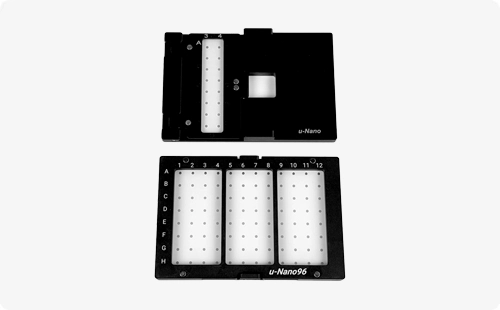

Instrument is equipped with filter-based fluorescence optics and dichroic mirrors for screening applications such as fluorescence polarization, and TR-FRET. Standard applications such as fluorescence-based DNA / RNA quantification assays are not only supported in microplates, but also in low volume u-Nano ultra-micro plate. The independent removable filter modules make it more convenient for users to replace the filter. The filter-based fluorescence optics detection ensures high sensitivity, greater light transmission, precise control over transmitted peak shape, excellent blockage of undesired wavelengths. This is ideal for excitation and emission applications. The filters are also the technically preferred and most cost efficient technology for non-abosrbance based assays.
Feyond series luminescence microplate readers show excellent sensitivity and wide dynamic range in both glow and flash based assays. The PMT enhances the maximum sensitivity of weak luminescence signals, prevents oversaturation of high signals, effectively improves the detection range of luminescence. The optimized light path minimizes signal crosstalk between holes and ensures the accuracy of experimental results. The precise dual-channel injector ensures assay performance even when assaying high-density 384-well plates
Software
-

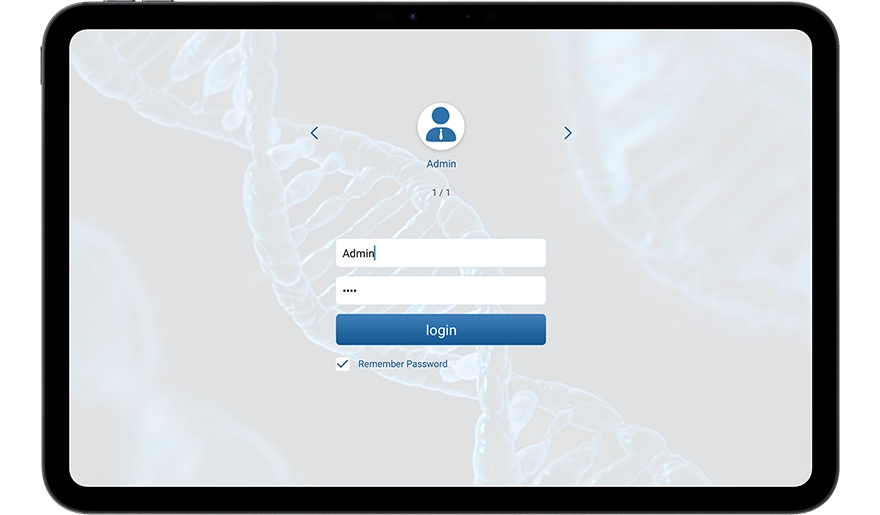

User Authority ClassificationUser permissions are divided into four levels, with clear permissions
The users have independent accounts and passwords to ensure the safety and confidentiality of experimental results. -

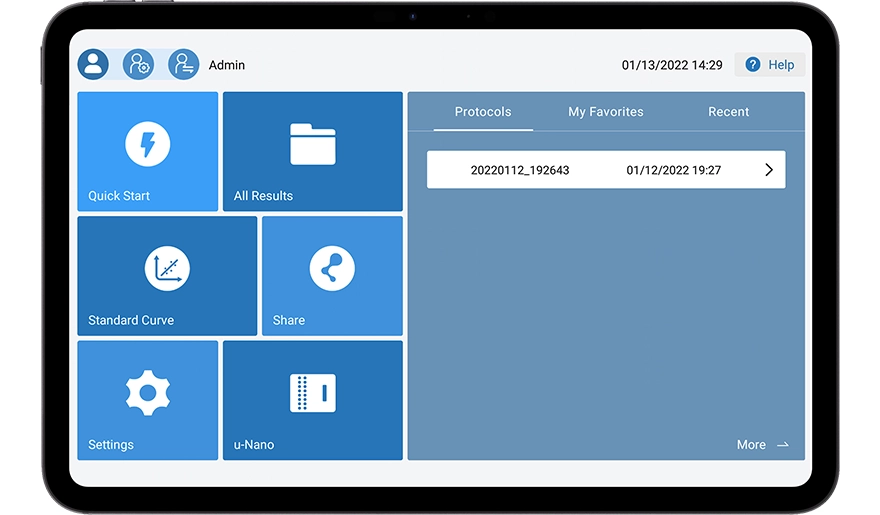

Intuitive Interface DisplayIntuitive selection of function modes, easy parameter setting
Programs and results are stored independently, making it easy to be found the required applications. -

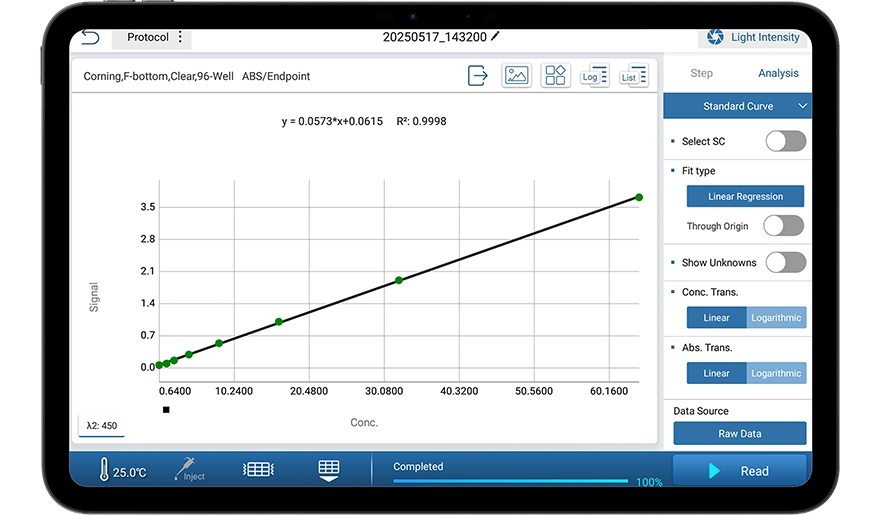

Powerful Data Analysis and ProcessProvide multiple data processing methods including blank subtraction, standard curve creation, qualitative analysis, quality control, kinetics and spectral analysis.
Algorithm customization: according to your assays needs, can customize the required algorithm. -
Liberalized User CommunicationThe software has with a shared library, which can store the program, results and standard curves for sharing them with others.

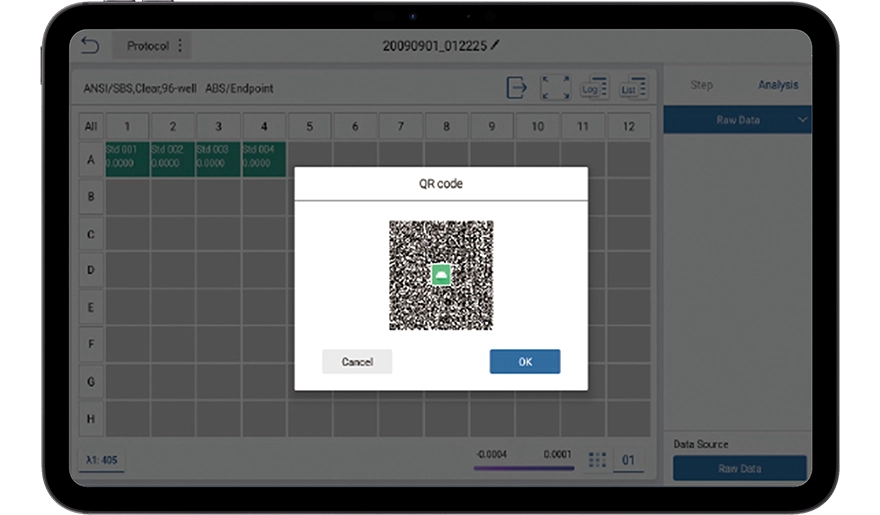

The program and standard curve can be created in real time to a QR code, and the required content can be imported only by scanning the code with the instrument.
