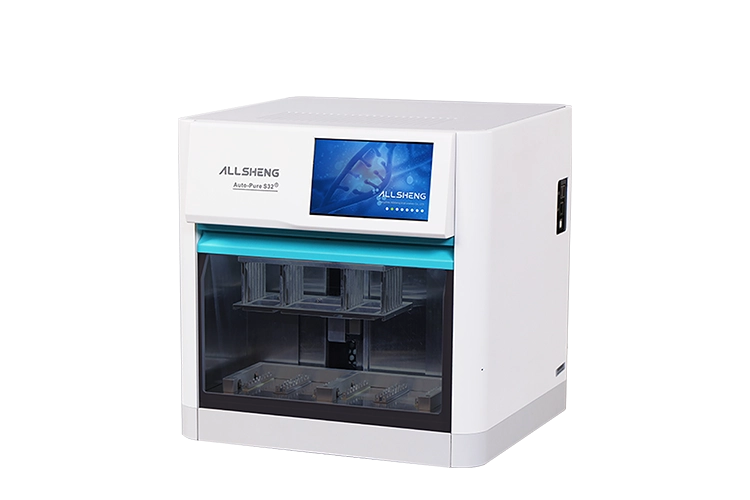

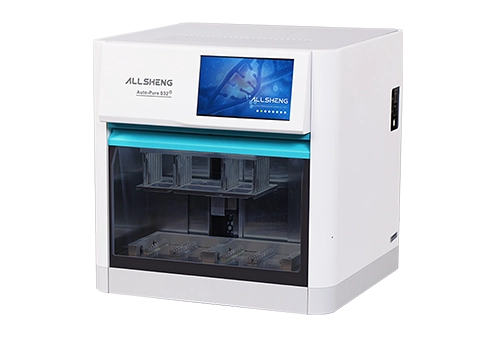

Auto-Pure S32
-
1-32×1 mL samples can be extracted in one run -
Support external scanner, automatically identify program / sample and other information after scanning
Features
-
Humanized Operating System
Chinese and English interface operation, touch screen operation, and external mouse, easy to use.
Built-in lighting LED for real-time observation of operating status.
Short operation time, with different reagents, the general extraction time is 10~60 min/time.
Support external scanner, automatically identify program / sample and other information after scanning.
Open Design, Flexible Extraction
1-32×1 mL samples can be extracted in one run.
Realize lysis heating and elution heating.
The mixing speed of 1-10 gears can be set flexibly, and the methods are more diverse.
Stable Operation, Safe and Reliable
The instrument runs quietly and the whole machine has no vibration.
Automatic reagents and disposable consumables reduce operator exposure to harmful reagents.
Select high-quality materials and processes, low loss of magnetic beads, high yield.
Built-in UV sterilization function reduces the risk of contamination.
Intelligent and Diverse Network System
Network control----extensible Ethernet remote control, WiFi function.
APP software----can expand the Android tablet computer, mobile phone monitoring system.
Expanded functions----IOT to achieve efficient background management.
PCR Detection General Solution
| Model | Auto-Pure S32 |
| Principle | Magnetic bead method |
| Throughput | 1~32 |
| Plate type | 96 deepwell plate |
| Process volume | 30~1000 μL |
| Stability | CV ≤5 % |
| Lysis temperature | RT.~120 °C |
| Elution temperature | RT.~120 °C |
| Heating time | RT.~120 °C ≤4 minutes |
| Cooling time | 100 °C~40 °C ≤10 minutes (RT.25 °C) |
| Temperature accuracy | ±0.5 °C |
| Temperature uniformity | At 100 °C, ±1 °C |
| Shake mixing | 1-10 gear can be set |
| Operation interface | 7 inch color large touch screen |
| Internal procedure | Up to 500 programs can be stored |
| Instrument interface | 2 USB (dual A type), 1 USB (B type), 1 Ethernet port |
| Network | Reserved 4G network |
| Barcode scanning | Automatically identify program / sample and other information |
| Sterilization | UV sterilization |
| Purification filter | Equipped with a purification filter system to reduce cross-contamination such as aerosols |
| Power supply | AC110-240 V, 50 / 60 Hz, 450 VA |
| Dimension (W×D×H) mm | 417×410×426 mm |
| Weight | 29.5 kg |
| Code | Product description |
| AS-17180-00 | Auto-Pure S32 nucleic acid purification system |
| AS-17061-02 | 96-deepwell plate for Auto-Pure 96 / Mini / S32 |
| AS-17031-02 | Magnetic rod comb for Auto-Pure S32 / 32A / 16A / Mini |
Selection Guide
Model | ||||
Throughput | 1~16 | 1~16 | 1~32 | 1~32 |
Processing volume | 20~1000 μL | 50~5000 μL | 30~1000 μL | 50~1000 μL |
Consumables | 8-tip comb 96 deepwell plate / single cartridge | 96 deepwell plate + magnetic rod comb | 96 deepwell plate + magnetic rod comb | 96 deepwell plate + magnetic rod comb |
Other functions | Can be connected to an app for use | - | Scanning function | - |
